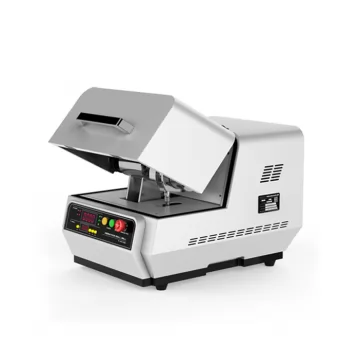

CHY-VC100 50/80ml Single Jar High-energy Vibration Ball Mill

CHY-VC100 50/80ml Single Jar High-energy Vibration Ball Mill

The high-energy vibration ball mill is a small desktop laboratory grinding instrument that uses a high-frequency three-dimensional vibration of 1700r/min to achieve grinding or mixing results of the sample. It is placed in a 50ml or 80ml ball milling tank for use, with a minimum processing capacity of 1g. It is used for testing the treatment of small or micro samples

Products Description

Model No.CHY-VC100
Feed Sample Size<1mm
Max processing capacity80ml*1pc; 50ml for option
Output sample size range0.1-20 um
Speed of ball milling jar1700r/min
Grinding ball materialTungsten carbide | Zirconia | Stainless steel optional
Power Supply220V AC,50-60Hz,250W
Dimension430*318*268mm
Main FeaturePassword lock | Continuous and intermittent operation | Emergency stop | Intermittent timing | Running timing | Memory | Overload protection
