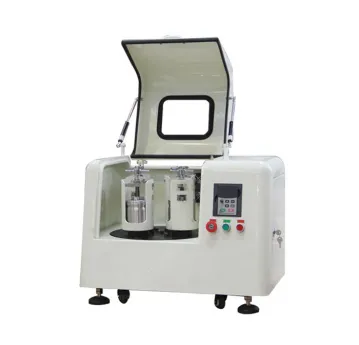

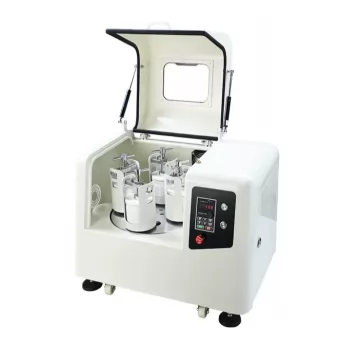

Laboratory Programmable Vertical Planetary Ball Mill with 4pcs Jars

YXQM serial ball mill is planetary ball mill designed to be operated on the table. 4 grinding stations with various milling jars allow you to prepare up to 4 different materials (alloys, ceramics, chemical products, polymer composites, metal oxides, minerals...) in an effective way.The output particle size can reach 0.1μm

Inquire Now

Products Description

Model No.	Jar Capacity	Vacuum Jar Capacity	Revolution speed	Rotational speed	Rated power	Jar Material
YXQM-0.4L	50~100ml	50ml	5~450rpm	10~900rpm	0.55kw	Tungsten carbide \| Zirconia \| Agate \| Stainless steel \| MC nylon optional
YXQM-1L	50~250ml	50~100ml	5~450rpm	10~900rpm	0.55kw
YXQM-2L	50~500ml	50~250ml	5~400rpm	10~800rpm	0.75kw
YXQM-4L	50~1L	50~500ml	5~400rpm	10~800rpm	0.75kw
YXQM-8L	500ml~2L	500ml-2L	5~320rpm	10~640rpm	1.5kw
YXQM-12L	1L-3L	1L-3L	5~320rpm	10~640rpm	1.5kw
