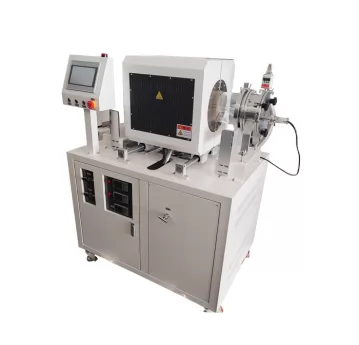

CHY-JK800D 1200 degree Split Type Near Space Sublimation Furnace

CHY-JK800D 1200 degree Split Type Near Space Sublimation Furnace

The Near space sublimation furnace is widely used for Preparation of CdTe, CdS, Sb2S3, and Sb2 (S, Se) 3 solar thin film cells based on near space sublimation (CSS) method.

Products Description

ModelCHY-JK800D
Control methodPLC controller with touch panel
Maximum Temperature≤800℃
Heating rate10℃/s
Sample size3 inch
Heating zone length300mm (constant zone 100*100mm)
Temperature uniform≤±2℃
Quartz Chamber sizeΦ150*700mm
Temperature accuracy±1℃
Sealing methodFast sealing flange
Temperature curveProgrammable control,can restore 100 sintering curve
Over Heating/Current alarmHave
Temperature sensorK type thermcouple
Vacuum10-3Pa~10-5Pa
Leakge≤5-4(Pa*m3/s)
Gas mixerThree way MFC;gas range as request
Power supplyAC380V/50Hz ;20Kw
Dimension1100*800*1300MM
