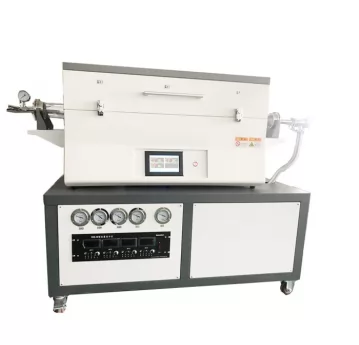

Modle No. | CHY-T1250C-5Z4C | CHY-T1260C-5Z4C | CHY-T1280C-5Z4C | CHY-T12100C-5Z4C |
Heating zones | three heating zone | |||
Heating zone length | 220+440+220mm | |||
Constant temperature zone length | 130+440+130mm | |||
Tube Material | high purity quartz tube | |||
Tube Dimension(mm) | O.D50*I.D44*L1400 | O.D60*I.D54*L1400 | O.D80*I.D74*L1400 | O.D100*I.D94*L1400 |
Thermcouple | K type | |||
Maximum heating temper | 1150 dgree | |||
Heating rate | 20c/min, adjustable suggestion 10 degree/min | |||
Heating element | Fe-Co-Al by Mo alloy | |||
Sealing Method | stainless steel vacuum flange | |||
Vacuum Air-tightness | 9.8×10-4Pa | |||
Temperature Accuracy | ±1℃ | |||
Control Mode | Intelligent PID programmable Control, 30 steps sintering curve restore | |||
Mass Flow Controller | 3 gas way mass flow controller | |||
Flowmeter Core | 304 stainless steel | |||
Measure Accuracy | +/- 1.0% F.S | |||
Pressure Range | -0.1~0.15MPa | |||
A way gas range | 0~100SCCM | |||
B way gas range | 0~200SCCM | |||
C way gas range | 0~500SCCM | |||
D way gas range | 0~500SCCM | |||
E way gas range | 0~1000SCCM, or as customized | |||
Vacuum Pump | VRD-4C | |||
Power Supply | AC220V 50Hz |
