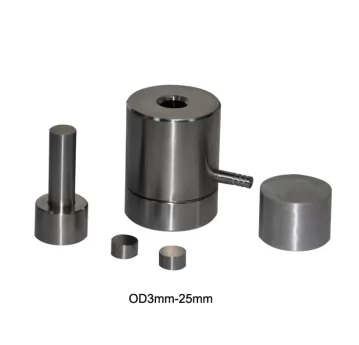

PMY OD3-25mm Round Shape Pellet Die Set

PMY OD3-25mm Round Shape Pellet Die Set

The round shape pellet die set is used for round shape pellet preparation.

Inquire Now

Products Description

Model No.PMY-APMY-BPMY-C
Die materialHigh speed steel:ASSAB+17High speed steel:ASSAB+17Alloy steel:Cr12MoV
HardnessHRC68-HRC70HRC68-HRC70HRC60-HRC62
Sample SizeΦ3,4,5,6mmΦ7,8,9,10,11,12,12.7,13mmΦ15,16,18,20,22,25mm
Cavity Depth20mm30mm40mm
DimensionΦ43*78mmΦ43*93mmΦ53*120mm
Gross weight0.55kg0.67kg1.34kg
