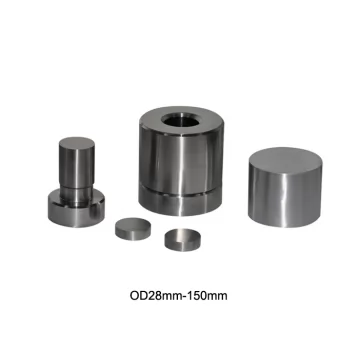

OD26-150mm Laboratory Round Shape Die Set

OD26-150mm Laboratory Round Shape Die Set

The round shape pellet die set is used for round shape pellet preparation.

Inquire Now Next Product

Products Description

Model No.PMY-DPMY-EPMY-FPMY-G
Die materialAlloy steel:Cr12MoVAlloy steel:Cr12MoVAlloy steel:Cr12MoVAlloy steel:Cr12MoV
HardnessHRC60-HRC62HRC60-HRC62HRC60-HRC62HRC60-HRC62
Sample SizeΦ28,30,32,35,40mmΦ50,60,70mmΦ80,90,100mmΦ120,150mm
Cavity Depth45mm55,60,65mm65mm65mm
DimensionΦ73*133mmΦ88*150mm;Φ98*180mm;Φ108*180mmΦ118*150mm;Φ128*180mm;Φ138*180mmΦ168*180mm;Φ218*180mm
Gross weight2.9kg5.1kg;7.3kg;9kg11.5kg,14kg,20kg30kg,40kg
