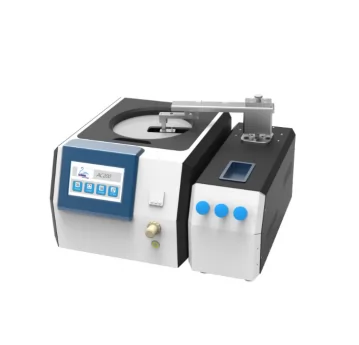

AC200-CTM Spin Coater System for Dropping glue, removing edges, developing machine

AC200-CTM Spin Coater System for Dropping glue, removing edges, developing machine

High precision servo motor drive, high precision, high repeatability

PLC control, 7-inch full-color touch screen operation, HDPE inner chamber, solvent resistant PC transparent cover

Can add back cleaning and edge removal glue functions to meet industrial machine applications

Can add splash proof cleaning and development functions to meet customization needs

Processable substrate size range: fragments smaller than 1cm to 8-inch circular substrates


Products Description

Model No.AC200-CTM
Max.Wafer Diameter1cm-8”
Speed adjustable range10000rpm,adjustable
Acceleration range50000rpm/s
Speed resolution1rpm
Max single step time3000s
Time resolution0.1s
Programmable control100 programmable,100steps
MotorDC servo Motor
Working voltageAC220V, 50Hz
Dropping glue, removing edges or developing function should contact us for more details
