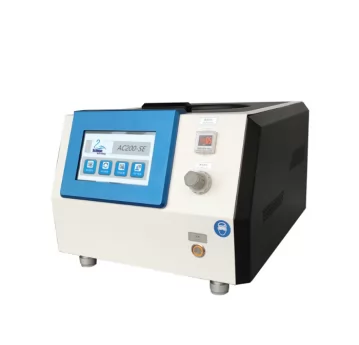

AC200-SE Programmable Control Servo Vacuum Spin Coater

AC200-SE Programmable Control Servo Vacuum Spin Coater

High precision servo motor drive, high precision, high repeatability

PLC control, 7-inch full-color touch screen operation, HDPE inner chamber, solvent resistant PC transparent cover

Can add back cleaning and edge removal glue functions to meet industrial machine applications

Can add splash proof cleaning and development functions to meet customization needs

Processable substrate size range: fragments smaller than 1cm to 8-inch circular substrates


Products Description

Model No.AC200-SE
Max.Wafer Diameter1cm-8”
Speed adjustable range10000rpm,adjustable
Acceleration range50000rpm/s
Speed resolution1rpm
Coating uniform<±3%
Max single step time3000s
Time resolution0.1s
Programmable control100 programmable,100steps
MotorDC servo Motor
Vacuum plateO. D 10mm, 25mm 2",4", 6" for option
Working voltageAC220V, 50Hz
Dimension345*460*320mm
