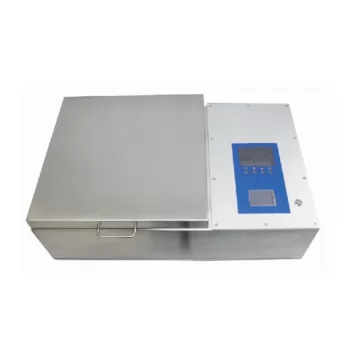

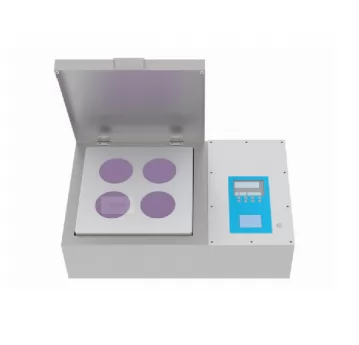

CHY-TC3016 Laboratory 325 degree Electric Hot Plate with 16" plate size
CHY-TC3016 Laboratory 325 degree Electric Hot Plate with 16" plate size

CHY-TC3016 Laboratory 325 degree Electric Hot Plate with 16" plate size

CHY-TC3016 compact hot plate is a precision temperature control hot plate for max 325 degree heating temperature. It adopts anodized aluminum heating panel sprayed with white high-temperature ceramic paint, corrosion-resistant. The TC3016 have 300*300mm plate size can max working with 16" wafer.

Products Description

Model No.CHY-TC3016
Temperature rangeRT~325℃
Panel size420*420mm
Panel materialAluminun alloy (high-temperature ceramic surface)
Interactive modePID+LCD digital display
Temperature control precision±0.2℃
Temperature control stability±0.2℃
Temperature control uniformity≤±1.5% (100℃)
Heating rate1-20 ℃/min
Temperature sensorK-type thermcouple
Rated powerAC220V/50Hz;2000w
Dimension500*650*220mm
