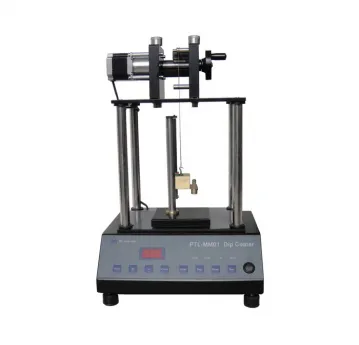

Desktop Programmable Control Dip Coater with variable Speed (1-200 mm/min) - PTL-MM01
Desktop Programmable Control Dip Coater with variable Speed (1-200 mm/min) - PTL-MM01

Desktop Programmable Control Dip Coater with variable Speed (1-200 mm/min) - PTL-MM01

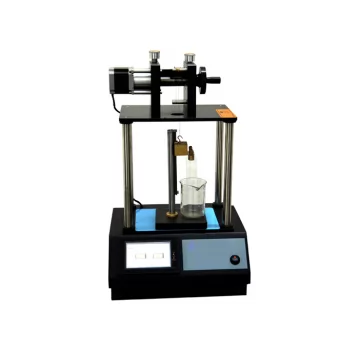

The PTL-MM02 programmable pull-up coating machine vertically impregnates the pull-up sample by pulling the wire, immersing the sample in the liquid phase thin film material for a period of time before pulling it out, so as to grow a certain thickness of thin film on the surface of the sample. The PTL-MM02 programmable pull-up coating machine adopts PLC program control, which can set the pull-up speed, immersion time of the sample in the liquid phase thin film material, sample liquid inlet speed, cycle number of sample in and out of the liquid phase thin film material, and drying time of the sample..

Products Description

Model No.PTL-MM01PTL-MM02
VoltageAC220V/50Hz; 50W
Dipping speed1 mm/min-200mm/min
Effective dipping length60mm
Dipping/drying time setting1~999s
Dipping times1~20times
Sample size75mm×25mm×2.5mm
ControllerLED button controlLCD programmable control
Machine dimension320mm×260mm×560mm
