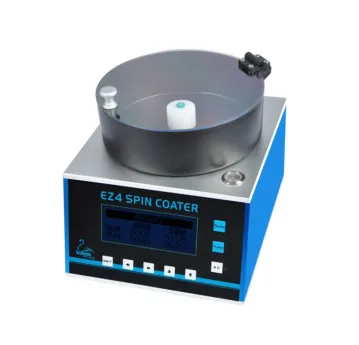

EZ4 is an economic desktop Vacuum Spin Coater without vacuum chunk which is designed for quality coating of sol-gel at the lowest cost. By using adhesive tape to stick and hold samples on the rotating plate, the instrument provides the advantages of cost effectiveness and ease of maintenance. Complete accessories such as vacuum chuck, oilless vacuum pump, electrical wire is included for immediately use.
Products Description
| Model No. | EZ4 |
| Chamber size | 1. Chamber diameter: 134mm diameter 2. wafer sample size: 1cm~4" |
| Vacuum Chuck | 10mm,25mm,2" centering chuck total 3 Pieces standard vacuum chuck included |
| Spin Speed | 1. Digital display with variable speed up 100 to 9999 RPM 2. Programmable segments of different spin times, 5 programmable with 5 steps of each program. 3. Speed resolution: 1rpm |
| Voltage | Wide range AC100~230V, adjustable |
| Diamension | 250*210*200mm |
| Gross weight | 16kg |
