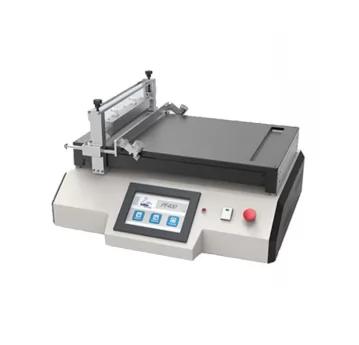

PF400-H is a large coating area tape casting coater with a bottom heating bed designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place.
Products Description
| Model No. | PF400-H |
| Film speed | 1-300mm/s, speed regulation accuracy: 1mm/s |
| Maximum stroke length | 420mm |
| Vacuum panel size | 540*345mm |
| Heating power | 2.75KW, thermal uniformity <±1.5% |
| Heating temperature | RT~200 °C, temperature control |
| Vacuum request | 0.06~0.09MPa, vacuum speed:15L/min |
| Power supply | AC220V/50Hz |
| Dimension | 627*531*342mm |
