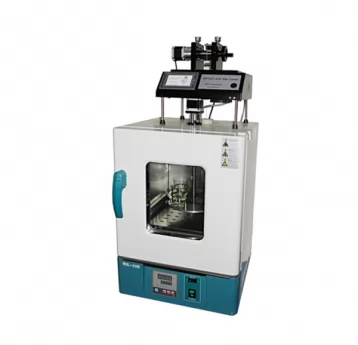

PTL-OV5P Automatic 5-station Constant temperature Pulling Coating machine

PTL-OV5P Automatic 5-station Constant temperature Pulling Coating machine

The PTL-OV5P fully automatic 5-station constant temperature pull-up coating machine is used for multi-layer impregnation coating of the same sample in different liquid phases, with up to 5 layers. This machine is equipped with a lifting wire that can simultaneously fix up to two identical samples for impregnation coating. The PTL-OV5P fully automatic 5-station constant temperature pull-up coating machine has a compact volume and can save laboratory space; Easy to operate, suitable for beginners to use; Easy to clean.

Products Description

Model No.PTL-OV5P
Power supplyAC220V/50Hz; 850W
Heating TemperatureRt~100℃;Temperature fluctuation:±1.5℃
Liquid Position5 liuquid position
Dipping speed

1-200 mm/min adjustable

Effective dipping length60mm
Dipping/drying time setting1~999s
Dipping times1~20times
Sample size75mm×25mm×2.5mm
Machine dimension450mm×500mm×1060mm
