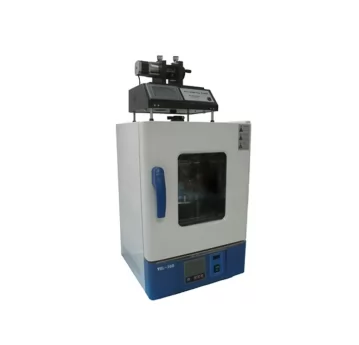

PTL-OV6P Programmable 6 Position Dipping Coater with Drying Oven upto 100 degree

PTL-OV6P Programmable 6 Position Dipping Coater with Drying Oven upto 100 degree

the PTL-OV6P 6-station dipping coating machine is working under the same external conditions, it can impregnate and pull up to 6 samples for coating, and different liquid phase film materials can be placed in each loading box. This machine is equipped with a constant temperature drying oven, which a

Products Description

Model No.PTL-OV6P
Power supplyAC220V/50Hz; 800W
Heating TemperatureRt~100℃;Temperature fluctuation:±1.5℃
Liquid Position6 liuquid position
Dipping speed

1-200 mm/min adjustable

Effective dipping length60mm
Dipping/drying time setting1~999s
Dipping times1~20times
Sample size75mm×25mm×2.5mm
Machine dimension450mm×500mm×1060mm
