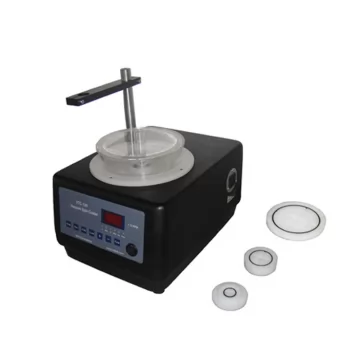

VTC-100 Compact Vacuum Spin Coater with oil free pump

VTC-100 Compact Vacuum Spin Coater with oil free pump

The VTC-100 vacuum spin coater is suitable for semiconductor processes, plate making, and surface coating. It adopts a vacuum adsorption sample method, making the sample easy to pick up and place, reducing the previous cumbersome operation procedures. Standard vacuum chuck include φ 25mm, φ 50mm, φ100mm each size one piece, suitable for coating different sizes of silicon wafers and other materials

Products Description

Model No.VTC-100
Power supplyAC220/50Hz;Rated power:≤150W
Sample HolderPolypropylene vacuum chuck :Φ25mm, Φ50mm Φ100mm each one piece
Running moldtwo operating stages for counterclockwise rotation
Spin speed

SPD1 : 500~8000RPM; SPD2:500~8000RPM

Coating timeTime 1: 1~600s; Time 2: 1~600s
Rotating stability±1%
Dimension380mm×260mm×330mm
