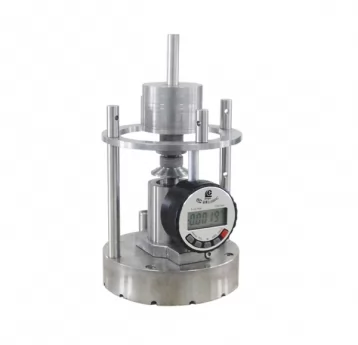

The GPC-80A precision grinding and polishing control instrument uses threads to connect the dedicated sample carrier block to the control instrument. The sample is attached to the sample carrier block in an adhesive form, and the sample carrier block bears a diameter of no more than 80mm and a thickness of no more than 9mm.
Products Description
| Model No. | GPC-80A |
| Sample tray diameter | Φ80mm |
| Axial travel of sample tray | 9mm (when the dividing nut moves one grid, the axial travel of sample tray is 0.025mm) |
| Digital display accuracy | 0.001mm |
| Empty pressure of sample tray | 750g |
| Bearing sample size | diameter ≤ 80mm, thickness ≤ 9mm |
| Dimension | Φ117*204mm |
