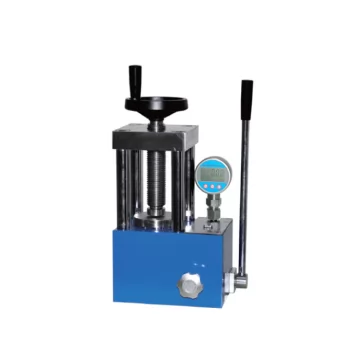

The small hydraulic press machine has a built-in hydraulic pump with auto return function for quick die removal & sample retrieval.
1. Small size, light weight, No oil linkage, easy to carry.
2. Digital display pressure gauge 0.1MPa accuracy,pressure control is more accurate.
Products Description
| Model No. | Pressure range | Piston Diameter | Pressure gauge | Pressure stability | Plate Diameter | Dimension |
| PC-15S | 0~15T (0-30Mpa) | Φ80mm | digital pressure gauge | ≤1MPa/10min | Φ90mm | 245*175*390mm |
| PC-24S | 0~24T (0-34Mpa) | Φ90mm | Φ105mm | 245*175*415mm | ||
| PC-30S | 0~30T (0-31.5Mpa) | Φ110mm | Φ120mm | 275*195*420mm | ||
| PC-40S | 0~40T (0-30Mpa) | Φ130mm | Φ140mm | 295*215*500mm |
