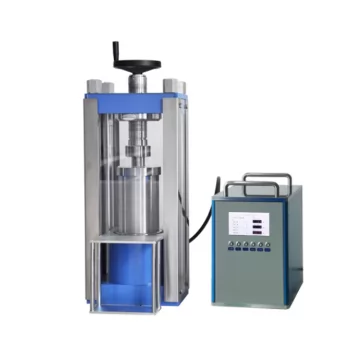

60T-200T Auto Cold Isostatic Press with PID control

The Electric Cold Isostatic press is designed for powder cip press.It's mold is made by rubble.The CIP tank max can have 300MPa pressure.500MPa vessel is availiable.

Inquire Now Next Product

Products Description

Model No.	Pressure range	Piston Diameter	Pressure Control	Isostatic pressure	Vessel Size	Dimension
PCD-65J	0~65T	Φ160mm	Program control press-hold-relief	0~300MPa 500MPa is availiable	Φ50*150mm	7004501050mm
PCD-100J	0~100T	Φ200mm			Φ60*150mm	8505001100mm
PCD-150J	0~150T	Φ250mm			Φ80*150mm	9505501150mm
PCD-200J	0~200T	Φ290mm			Φ90*150mm	10006501200mm
