15-60F Laboratory Manual Digital Press with Protective Cover

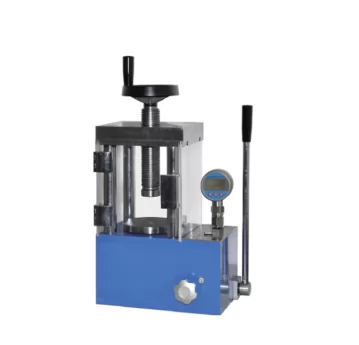

15T-60T Manually digital Hydraulic Press with Protective Cover is a compact desktop manul press with protective cover amd precision digital gauge. It is designed for is designed for preparing compound ceramic samples in materials/chemistry research laboratories.

Inquire Now Next Product

Products Description

Model No.	Pressure range	Piston Diameter	Pressure gauge	Pressure stability	Plate Diameter	Dimension
PC-15FS	0~15T (0-30Mpa)	Φ80mm	digital pressure gauge	≤1MPa/10min	Φ90mm	260175395mm
PC-24FS	0~24T (0-34Mpa)	Φ95mm			Φ105mm	305195425mm
PC-30FS	0~30T (0-31.5Mpa)	Φ110mm			Φ120mm	305195425mm
PC-40FS	0~40T (0-30Mpa)	Φ130mm			Φ140mm	355215505mm
PC-60FS	0~60T (0-34Mpa)	Φ150mm			Φ160mm	405240565mm
