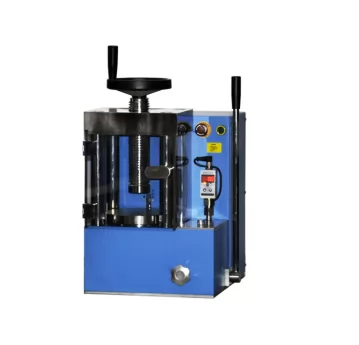

20T-60T Laboratory Electric Hydraulic Press for Powder Pressing

PCD serial 20T to 60T Laboratory Hydraulic Press is a compact desktop press with electric pressing. It is designed for preparing compound ceramic samples in materials/chemistry research laboratories

Inquire Now Next Product

Products Description

Model No.	Pressure range	Piston Diameter	Pressure gauge	Pressing method	Plate Diameter	Dimension
PCD-20S	0~20T (0-28Mpa)	Φ95mm	digital pressure gauge	Electric pressing Stability:≤1MPa/10min	Φ105mm	245415415mm
PCD-30S	0~30T (0-31.5Mpa)	Φ110mm			Φ120mm	275430420mm
PCD-40S	0~40T (0-30Mpa)	Φ130mm			Φ140mm	295450500mm
PCD-60S	0~60T (0-33Mpa)	Φ150mm			Φ160mm	405470565mm
