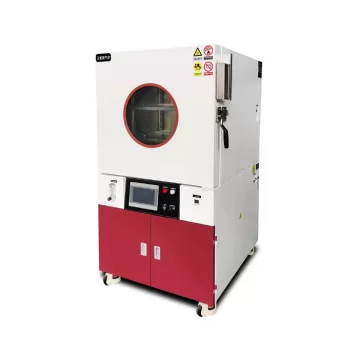

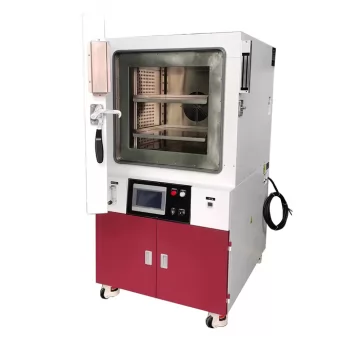

Laboratory 200 Degree High Temperature Curing Testing Anaerobic Nitrogen Furnace
Laboratory 200 Degree High Temperature Curing Testing Anaerobic Nitrogen Furnace

Laboratory 200 Degree High Temperature Curing Testing Anaerobic Nitrogen Furnace

DZF-6090DQ is suitable for curing or testing various performance indicators of products and materials in high-temperature environments in fields such as aviation, precision metal processing, automobiles, industrial and mining enterprises, household appliances, laboratories, research institutions, and colleges and universities.

Products Description

Structural characteristics

1. Inner box material: 1.5mm thick high-quality SUS304 stainless steel mirror without deformation

2. Outer box material: 1.2mm thick cold-rolled steel plate with electrostatic baking paint, sturdy, beautiful, and durable

3. Inner box process: Made of stainless steel integral welding to ensure sufficient circulation protection of the test sample under the injection of inert gas

4. Insulation cotton: The insulation layer thickness of the whole machine is 100mm, filled with ultra-fine ultra ceramic fiber insulation cotton/silicate aluminum plate

5. Heater: Ceramic tile heater, embedded heating element installed in the stainless steel cavity interlayer is extremely safe

6. Fan: Circulating dual group dedicated long shaft high-temperature turbine structure fan, specialized in shaft design with better resistance to temperature changes in high-temperature environments

7. Cooling and exhaust system: There is an exhaust pipe installed at the top, and a turbine high-temperature fan is used to forcibly exhaust the hot air inside the box after the end of operation.

8. Gas protection: The operation panel is designed with an inert gas control flow meter, which controls the intake by adjusting the flow rate

9. Nitrogen interface: After installation at the bottom of the box, a 10mm caliber automatic air inlet is connected to the control nitrogen flow pipeline.

10. Sample tray: Made of stainless steel bent plate, perforated on the surface of the partition, with a material thickness of 1.0mm. The whole machine is equipped with 2 stainless steel partitions, and each layer of partition is designed to carry a load of 15kg

11. The height of the tray can be adjusted up and down, with adjustable high and low feet


Model No.DZF-6090DQ
Input Power5500W
Temperature RangeRt~200 degree;
Temperature resolution0.1℃
Temperature Volatility±0.5℃
Oxygen Concentration1000ppm
Nitrogen flow detection0~60L/min
Nitrogen flow regulation0~100L/min float flow meter
Chamber Size(mm)450*450*450
Capactiy90L
Sample trayer2 layer
Chamber MaterialStainless Steel
Overall Size615*590*1470mm
