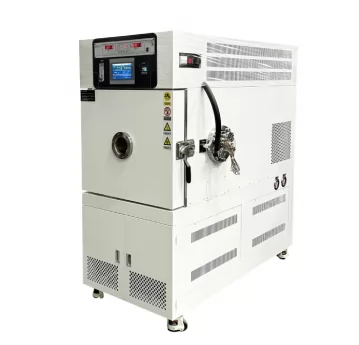

The cold and hot vacuum environment test chamber is used to conduct thermal cycling tests on specimens under vacuum conditions. Suitable for aviation, aerospace, intelligent manufacturing, new energy industries, electronic instruments and meters, materials and electrical engineering, vehicles, metals, electronic products, and various electronic components in high-temperature vacuum environments, for testing their performance indicators and quality management. Used for drying, baking, heat treatment, etc.
Model No. | HX-DZF255LR |
Input Power | 380V/50Hz, 11Kw |
Temperature Range | -70~+120℃ |
Vacuum chamber size | 600*600*700mm |
Operation chamber size | 620*470*370mm |
Limited vacuum degree | 10E4Pa |
Temperature resolution | 0.1℃ |
Temperature fluctuation | ±0.2℃(Constant condition) |
Heating/cooling rate | >1.0~3℃/min |
Nitrogen flow speed | 0~100L/min |
Heating method | Built in hot and cold plates (4 sides) |
Temperature sensor | PT100 |
Cooling method | Compressor cascade refrigeration |
Control | PLC touch panel Programmable control |
Safety | Over temperature, Leakage protection, broken resistance wire alarm, phase loss protection, grounding protection, etc |
Dimension | 1300*110*1800mm |
