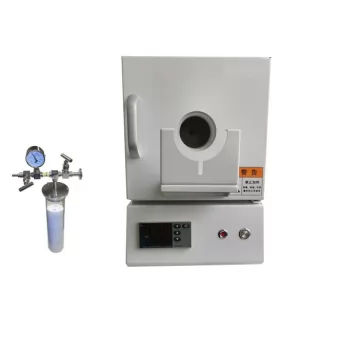

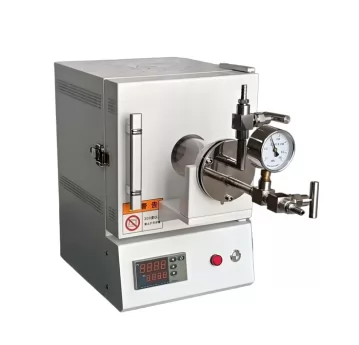

CHY-H1210 1200 degree Mini Muffle Tube Furnace 4"*4"*4" Chamber size

CHY-H1210 1200 degree Mini Muffle Tube Furnace 4"*4"*4" Chamber size

1. 100*100*100mm chamber Size

2. High quality ceramic fiber chamber

3. PID Programmable controller

4. Quartz Tube size OD60*270mm


Products Description

ModelCHY-H1210
Furnace Doorside open type
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1150℃
Heating rate≤20℃/min  Suggest:10℃/min
Chamber Size100mm×100mm×100mm
Quartz Tube SizeOD60*270mm
Tube Vacuum range9.8×10-4Pa
Sealing methodS.S flange
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
AlarmBuilt-in over-temperature alarm and thermocouple failure alarm
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Hearth Materialhigh purity alumina fiber
Power Supply220V 50Hz
Rated power1.0kw
Overall dimensions250*280*380mm
