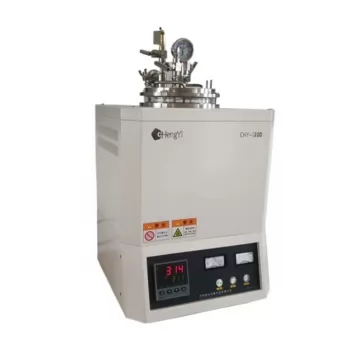

CHY-JZ30 1200 Degree Vertical Vacuum Crucible Muffle Furnace

The crucible muffle furnace is designed with a quartz chamber which allows vacuum sealing and also equipped with gas inlet/outlet port,can insert protective gas. The quartz chamber effectively isolates the contact between the reaction gas and the furnace material and heating element, reducing the risk of corrosion to the furnace material and heating element. Can effectively replace the atmosphere box furnace.

Inquire Now Next Product

Products Description

Model	CHY-JZ30
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1100℃
Heating rate	≤20℃/min Suggest:10℃/min
Chamber size	200200300mm
Quartz Chamber Size	180mm*260mm
Chamber capactiy	12L
Vacuum degree	100Pa
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Cooling method	Water cooling flange
Over heat alarm	Have
Alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Chamber Material	High Purity Quartz Chamber
Power Supply	220V 50Hz
Rated power	4kw
Overall dimensions	650(Lmm)600(Wmm)520H(mm)
