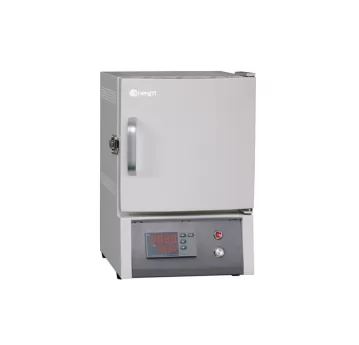

CHY-M1210 1200 degree Mini Muffle Furnace 4"4"4" Chamber size

1. 100*100*100mm chamber Size

2. High quality ceramic fiber chamber

3. PID Programmable controller

Inquire Now Next Product

Products Description

Model	CHY-M1210
Furnace Door	side open type
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1150℃
Heating rate	≤20℃/min Suggest:10℃/min
Chamber Size	100mm×100mm×100mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Alarm	Built-in over-temperature alarm and thermocouple failure alarm
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Hearth Material	high purity alumina fiber
Power Supply	220V 50Hz
Rated power	1.0kw
Overall dimensions	250280380mm
