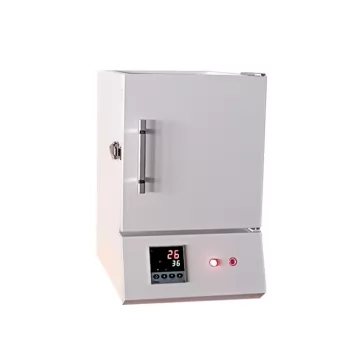

CHY-M1215 1200 degree Muffle Furnace with 4.5L chamber size

CHY-M1215 1200 degree Muffle Furnace with 4.5L chamber size

1. 150*200*150mm chamber dimension

2. High quality ceramic fiber chamber

3. 30 setps PID Programmable controller

4. Heavy duty double layer structure


Products Description

ModelCHY-M1215
Furnace Doorside open type
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1150℃
Heating rate≤20℃/min  Suggest:10℃/min
Chamber Size150mm×200mm×150mm; big chamber size availiable
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
AlarmBuilt-in protection for the over-heating and broken thermocouple.
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Hearth Materialhigh purity alumina fiber
Power Supply220V 50Hz
Rated power3.0kw
Overall dimensions390*600*430mm
