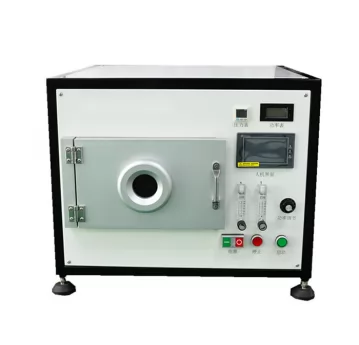

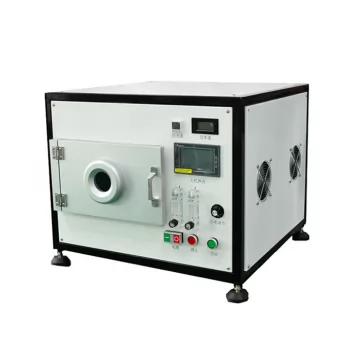

CHY-15S 40KHz Vacuum Plasma Cleaner with 10L Chamber size
CHY-15S 40KHz Vacuum Plasma Cleaner with 10L Chamber size

CHY-15S 40KHz Vacuum Plasma Cleaner with 10L Chamber size

CHY-15S is a vacuum plasma cleaner with Stainless steel chamber.The chamber size is 260mm×320mm×200mm with 40KHz frequency power.It is equipped with two float flow meter can allows gas insert.Accuracy MFC is availiable.

Products Description

Model No.CHY-15S
DisplayLCD touch controller
Working voltageAC 220V, 50Hz
RF Frequency40KHz
RF power0~300 w;600W for option
RF offset< 0.2KHz
Characteristic impedance50Ω, automatic matching
Vacuum degree30-100Pa, equipped with a mechanical pump
Gas speedTwo way Float Flow Gas Control:10-160ml/min, adjustable
ControlMCU Auto Control or Mannually adjustable
Inner chamber sizeChamber Dimension :220 ×260×200mm
Pressure GaugeA simple digital pressure gauge is equipped for reading
Clearing time1-9999S adjustable
Cooling wayForced cooling
Outer dimension 580×600×480mm
