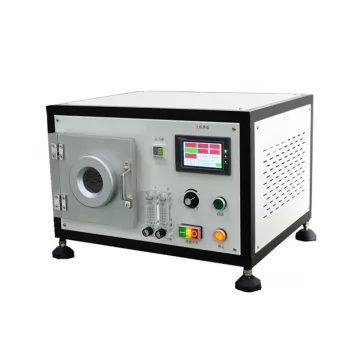

CHY-5S 40KHz Plasma Cleaner with 5L Stainless Steel Chamber

CHY-5S is a vacuum plasma cleaner with Stainless steel chamber.The chamber size is Φ150mm×270mm with 40KHz frequency power.It is equipped with two float flow meter can allows gas insert.Accuracy MFC is availiable.

Inquire Now Next Product

Products Description

Model No.	CHY-5S
Display	LCD touch controller
Working voltage	AC 220V, 50Hz
RF Frequency	40KHz
RF power	0~300 w
RF offset	< 0.2KHz
Characteristic impedance	50Ω, automatic matching
Vacuum degree	10-1000Pa, equipped with a mechanical pump
Gas speed	Two way Float Flow Gas Control:10-160ml/min, adjustable
Control	MCU Auto Control or Mannually adjustable
Inner chamber size	Chamber Dimension: Φ150mm×270mm; Capacity: 5L
Pressure Gauge	A simple digital pressure gauge is equipped for reading
Clearing time	1-9999S adjustable
Cooling way	Forced cooling
Outer dimension	560x540x410mm
