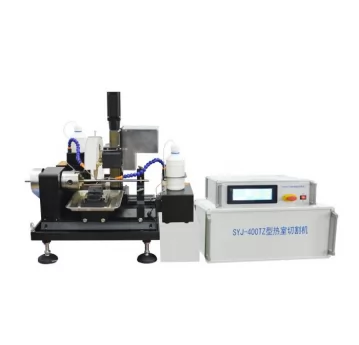

SYJ-400TZ Hot Chamber Diamond Cutting Saw

SYJ-400TZ Hot Chamber Diamond Cutting Saw

SYJ-400TZ Features:

1. Installed in a hot room, suitable for hot room environment and robotic arm operation

2. The equipment has requirements for fuel rod fixed-point cutting and metallographic sample cutting functions

3. This machine can be controlled by a remote touch screen, and users can set parameters according to actual requirements for automatic cutting


Products Description

Power supplyAC 220V 50Hz
Main Axis speed100-3000rpm
A axis rotating angle360°
X axis sliding distance160mm;
Z axis sliding distance100mm
Positioning accuracy of stepper motor0.01mm
Diamond saw size
Φ150±10mm
Fuel rod samplesΦ9.5×1000mm
Metallographic sample sizeΦ32×140mm
Control methodPLC programmable control with touch panel
Dimension

Saw:510*500*635mm

Controller:500*400*210mm

Remote controller:380×310×210mm
