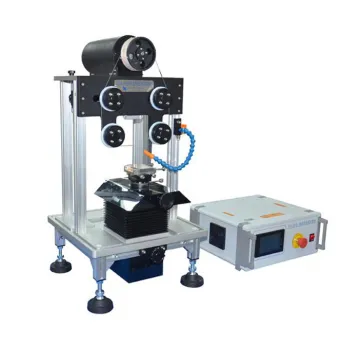

STX-202A Desktop Precision Diamond Wire Saw with Touch Screen Control

STX-202A Desktop Precision Diamond Wire Saw with Touch Screen Control

STX-202A is a small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm in thickness. It is designed to provide smooth cutting for many kinds of materials, especially for fragile crystals and TEM or IC samples by using a 0.28mm diameter x 15-meter long diamond impregnated wire. It is an ideal cutting tool for material research, TEM sample preparation, and IC failure analysis.

Products Description

Power supplyAC 220V 50Hz
Sample stageZ-axis: 50mm, automatically controlled by the digital panel
Y-axis: 50mm, automatically controlled by the digital panel
Two-dimension sample stage built-in 360° degree horizontal rotating and +/-10° tilting vis manual operation
Cutting parametersFeed Speed: 0.01 mm/min to 40 mm/min adjustable
Back Speed: 1 mm/min to 100 mm/min adjustable
Spooler spin speed: 1-260 RPM adjustable
Cutting depth: 0.1 - 50mm
Positional accuracy: +/- 0.01 mm
Controller & Touch ScreenWire travel speed, cutting speed and slicing width is setted by touch screen controller
Diamond wire≤ 15 meters used for each installatio
Wire tension systemsteel spring wire tension system with break wire alarm is included
Product dimensionsSaw: 414mm(L) x 500mm(W) x 750mm(H)
Controller: 340mm(L) x 290mm(W) x 170mm(H)·
