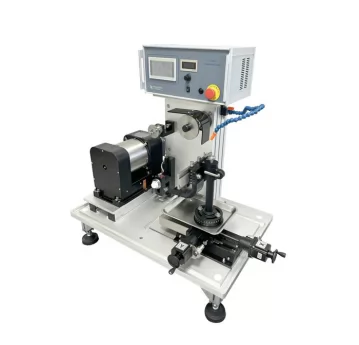

STX-402 Desktop Diamond Wire Cutting Saw

STX-402 Desktop Diamond Wire Cutting Saw

The STX-402 desktop diamond wire cutting machine is a small desktop diamond wire cutting equipment developed and manufactured by our company. Can be used for precision cutting of brittle materials such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials, and biomedical materials, with a cutting size of up to 4inch.

Products Description

Power supplyAC 220V 50Hz;250W
Diamond wire length≤100m
Diamond wire diameter≤0.45mm
Diamond wire tensioning methodspring type tensioning
Main axis cutting rotation methodreciprocating rotation
Spindle drive motorDC motor+reducer 6KB DC110V 120W
Main axis speed
2m/s adjustable
Effective stroke of X-axis workbench≤ 110mm
Effective stroke of Y-axis workbench≤ 110mm
X and Y axis feed accuracy0.01mm
Cutting speed setting range0.05-40mm/min
Vertical angle range of 3D fixture± 10 °
Horizontal rotation range of 3D fixture± 70 °
Y-axis and X-axis drive motorsprecision stepper motors
Maximum distance between guide wheels≤ 150mm
Max cutting sample sizeΦ 100mmX100mm
Control methodPLC programmer+4.3-inch touch screen
Dimension812mm×700mm×910mm
