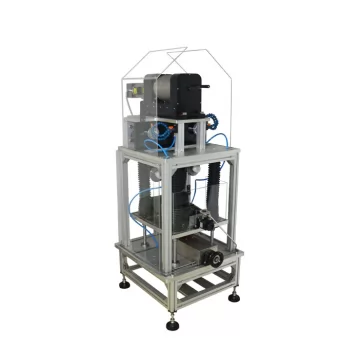

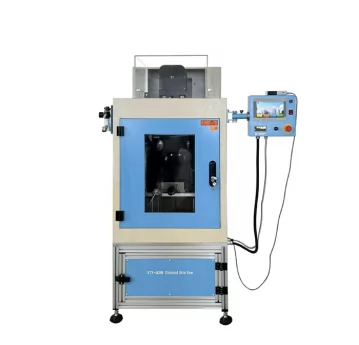

STX-600 Laboratory PLC control Diamond Wire Saw
STX-600 Laboratory PLC control Diamond Wire Saw

STX-600 Laboratory PLC control Diamond Wire Saw

The STX-600 diamond wire cutting machine is a compact diamond wire cutting equipment developed and manufactured by our company. Can be used for precision cutting of brittle materials such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials, and biomedical materials.

Products Description

Model No.STX-604STX-605ASTX-605B
Power supplyAC 220V 50Hz;350WAC 220V 50Hz;350WAC 220V 50Hz;370W
Diamond wire length≤150m
Diamond wire diameterφ0.25-0.45mm
Diamond wire tensioning methodspring type tensioning
Tensioning pressure range0.1-0.4Mpa
Main axis cutting rotation methodreciprocating rotation
Spindle drive motorAC motor+reducer AC220V 300W
Main axis speed
5m/s adjustable8m/s adjustable
Effective stroke of Z-axis workbench≤ 160mm
Effective stroke of Y-axis workbench≤ 180mm
Z and Y axis feed accuracy0.01mm
Rotating AngleManual:horizontal:0-360°Automatic:horizontal:0-360°
Y-axis and X-axis drive motorsprecision stepper motors
Maximum distance between guide wheels≤ 180mm
Max cutting sample sizeΦ150mmX150mm
Control methodPLC +4.3-inch touch screenPLC programmer+7 inch touch screen
Safety controlWinding drum overtravel, wire breakage self stop, emergency stop switch
Dimension640x700x1450mm617×620×1500mm720×1030×1800mm
