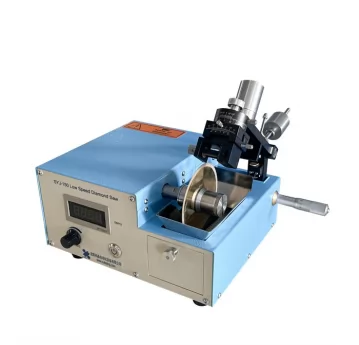

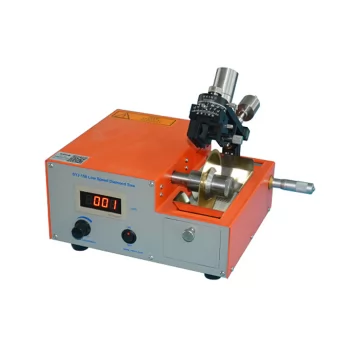

SYJ-150 Low Speed Diamond Saw
SYJ-150 Low Speed Diamond Saw

SYJ-150 Low Speed Diamond Saw

SYJ-150 can be used for cutting various materials, with low speed stability, low loss, small deformation, gravity feed, and saw blade size φ 100mm, cutting depth ≤ 35mm

Products Description

Power supplyAC 220V 50Hz,DC24V 6.67A;50W
Main Axis speed25~600rpm
Maximum stroke of slide feed50mm
Fine tune distance25mm (0.01mm acccuracy)
Cutting saw sizeΦ76~Φ100×Φ12.7mm
Max cutting depth25mm
2D fixture

Hrizontal: 360° ; Tilt angle±15°


Sample Holder25×50mm;clamp opening:25mm
Dimension370×330×330mm
