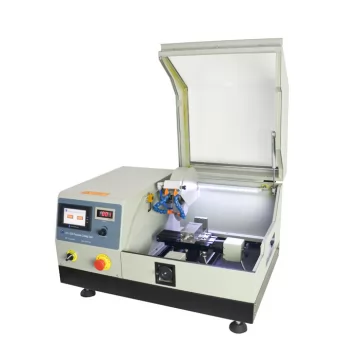

SYJ-200 Automatic Precision Diamond Cutting Saw

SYJ-200 Automatic Precision Diamond Cutting Saw

SYJ-200 automatic precision diamond cutting saw is a CE certified cutting equipment widely used in factories, colleges, and research institutes, for cutting metals, crystals, ceramics, glass, rock samples, mineral samples, concrete, organic materials, polymer materials, and composite materials.

Products Description

Power supplyAC 220V 50Hz,650W
Main Axis speed300-3500rpm
Maximum stroke of slide feed50mm
X axis sliding distance80mm;
Y axis sliding distance105mm
Positioning accuracy of stepper motor0.01mm
Clamp max opening55mm
Cutting saw sizeΦ200mm
Control methodPLC programmable control with touch panel
Dimension740mm×590mm×490mm
