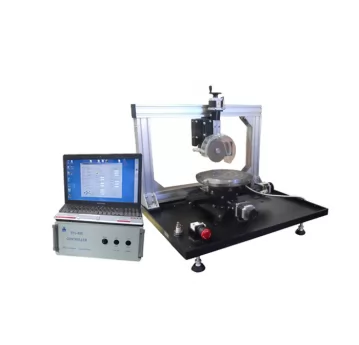

SYJ-800 Laboratory Compact CNC Slicing Cutting Saw

SYJ-800 Laboratory Compact CNC Slicing Cutting Saw

The SYJ-800 CNC cutting machine is a continuous cutting machine that uses computer three-dimensional control, and controls the cutting process of samples through programming on the computer. Mainly suitable for slicing and grooving crystals, ceramics, glass, and various thin sheet materials, it can also be used for cutting various materials such as crystals, ceramics, glass, ores, metals, etc. The sample can be cut with a diameter of up to 200mm and a cutting depth of up to 10mm.

Products Description

Power supplyAC 220V 50Hz;180W
Main Axis speed0-3000rpm
Rotating angle360°
X axis sliding distance200mm
Y axis sliding distance200mm
Z axis sliding distance55mm
Positioning accuracy of stepper motor0.01mm
Diamond saw size
Φ150±10mm
Max Cutting depth10mm
Vacuum Plate Sizeφ203.2mm
Control methodPLC programmable control with touch panel
Dimension

700mm×530mm×710mm
