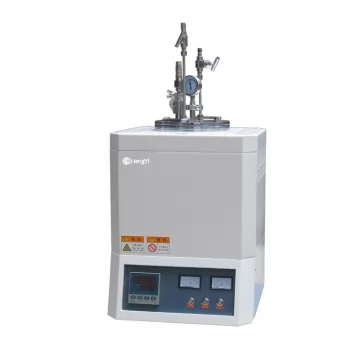

CHY-JZ20 1200 degree Vertical Type Vacuum Muffle Furnace

CHY-JZ20 1200 degree Vertical Type Vacuum Muffle Furnace

CHY-JZ20 is a compact vertical type vacuum muffle furnace with round shape quartz heating chamber.This furnace is sealed by vacuum flange which allows insert gas or vacuum heating.Max working temperature is 1150 degree with 5L capacity, the temperature accuracy is ±1℃. It is widely used for laboratory sample heating,annealing etc.

Products Description

ModelCHY-JZ20
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min Suggest:10℃/min
Chamber size180*180*210mm
Chamber capactiy5L
Vacuum degree100Pa
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
AlarmBuilt-in protection for the over-heating and broken thermocouple.
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz Tube
Power Supply220V 50Hz
Rated power3.5kw
Overall dimensions460*440*680mm
