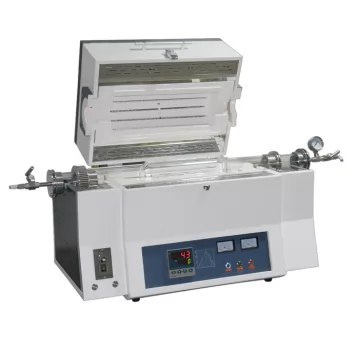

CHY-R1260A 1200 degree Vacuum Rotary Tube Furnace
CHY-R1260A 1200 degree Vacuum Rotary Tube Furnace

CHY-R1260A 1200 degree Vacuum Rotary Tube Furnace

R1260A 1200 degree vacuum rotary tube furnace is a single heating zone tube furnace. This tube furnace max heating temeprature is upto 1150 degree controlled with PID precison temperature control, the furnace tube can 360 degree rotatin. It is suitable for powder sample heating etc.

Products Description

ModelCHY-R1260A
Furnace DoorSplit Type Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D60*1000mm
Inner DiameterI.D 100*400mm
Heating Zone Length440mm
Constant Heating Zone200mm
Rotating speed360°
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Heating alarmBuilt-in protection for the over-heating and broken thermocouple.
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz Tube
Power Supply220V 50HZ
Rated power3.2kw
Overall dimensions890*470*610mm
