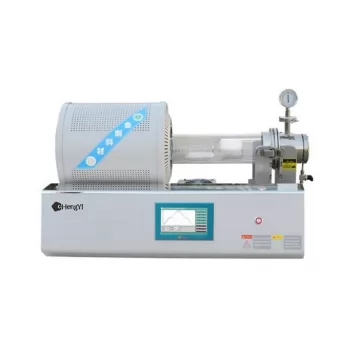

CHY-RTP1100 1200 degree Vacuum RTP Tube Furnace with water cooled flange

CHY-RTP1100 1200 degree Vacuum RTP Tube Furnace with water cooled flange

The CHY-RTP1100 vacuum RTP tube furnace is adopted Halogen heating lamp,which make sure the heating rate can upto 100 degree per second. The rated heating power is 12KW. It has water cooled vacuum sealing flange and inlet gas port which allows vacuum heating or gas protective heating.The furnace's max working sample is 4".

Products Description

ModelCHY-RTP1100
Display ModelHighlight LED display
Maximum Temperature1050℃
Working Temperature≤1000℃
Heating rate100℃/second
Heating zonesSingle heating zone
Quartz Tube DiameterO.D110*450mm
Heating zone length200mm
Max heating sample size100mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Temperature SensorK-type thermocouple
Heating ElementHalogen Lamp
Quartz Tube MaterialHigh Purity Quartz Tube
Power Supply220V 50Hz
Rated power12kw
Overall dimensions800*540*750mm
