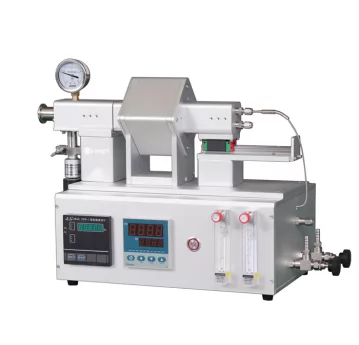

CHY-RTP50 Laboratory 1200 degree Mini RTP Tube Furnace

The CHY-RTP50 mini RTP tube furnace is adopted Halogen heating lamp,which make sure the heating rate can upto 20 degree per second. The rated heating power is 1.5KW. It has vacuum sealing flange and two gas way mixer allows sample heating in vacuum or gas protective surrounding.It is a compact tool for mini sample fast heating cooling request.

Inquire Now Next Product

Products Description

Model	CHY-RTP50
Display Model	Highlight LED display
Maximum Temperature	1050℃
Working Temperature	≤1000℃
Heating rate	20℃/second
Heating zones	Single heating zone
Quartz Tube Diameter	O.D50mm
Heating zone length	100mm
Max heating sample size	35mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Temperature Sensor	K-type thermocouple
Heating Element	Halogen Lamp
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50Hz
Rated power	1.5kw
Overall dimensions	610400410mm
