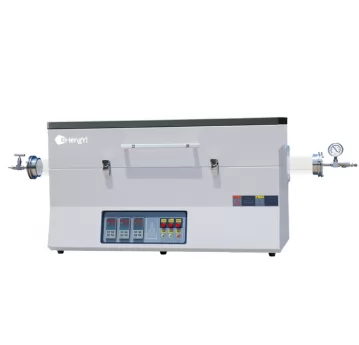

CHY-T1200C 1200 degree Three Heating Zone Vacuum Tube Furnace with PID control

T1200C serial 1200 degree Electric vacuum tube furnace is three heating zone tube furnace. It have Φ50/Φ60/Φ80/Φ100mm quartz tube size for option.This tube furnace max heating temeprature is upto 1150 degree controlled with Seperate PID precison temperature control, the temperature accuracy is ±1℃.Heating zone length is 220+440+220mm. It is widely used for laboratory sample heating,annealing etc.

Inquire Now Next Product

Products Description

Model	CHY-T1250C	CHY-T1260C	CHY-T1280C	CHY-T12100C
Furnace Door	Split Type Furnace
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1100℃
Heating rate	≤20℃/min Suggest:10℃/min
Heating zones	three heating zone
Quartz Tube Diameter(mm)	O.D50I.D44*1400L	O.D60I.D541400L	O.D80I.D741400L	O.D100I.D941400L
Heating Zone Length	220+440+220mm	220+440+220mm	220+440+220mm	220+440+220mm
Constant Heating Zone	130+440+130mm	130+440+130mm	130+440+130mm	130+440+130mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Heating alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50Hz
Rated power	8.0kw
Overall dimensions	1060×470×610mm
