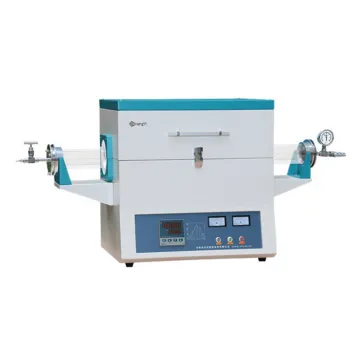

CHY-T12100A 1200 degree Vacuum Horizontal Tube Furnace

CHY-T12100A 1200 degree Vacuum Horizontal Tube Furnace

1. O.D100*1000 high purity quartz tube

2. High quality ceramic fiber chamber

3. PID Programmable controller

4. Heavy duty double layer structure

Products Description

ModelT12100A
Furnace DoorOpen Type Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D100*1000mm
Inner DiameterI.D 94*1000mm
Heating Zone Length440mm
Constant Heating Zone260mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz Tube
Power Supply220V 50HZ
Rated power3.5kw
Overall dimensions630×470×610 (mm)
