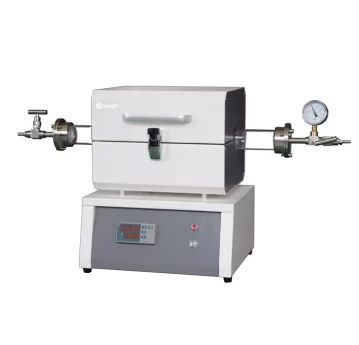

CHY-T1225S 1200 degree Mini Tube Furnace with OD25*600mm Quartz Tube

CHY-T1225S 1200 degree Mini Tube Furnace with OD25*600mm Quartz Tube

T1225S mini tube furnace is compact vacuum tube furnace with Φ25*600mm quartz tube. This tube furnace max heating temeprature is upto 1150 degree controlled with PID precison temperature control, the temperature accuracy is ±1℃. It is widely used for laboratory sample heating,annealing etc.

Products Description

ModelCHY-T1225S
Furnace DoorSplit Type Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D25*I.D20*600mm
Heating Zone Length200mm
Constant Heating Zone100mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
AlarmBuilt-in protection for the over-heating and broken thermocouple.
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz Tube
Power Supply220V 50Hz
Rated power1.2kw
Overall dimensions380×320×430 (mm)
