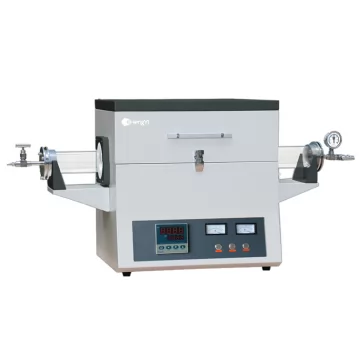

CHY-T1260A Laboratory Vacuum Horizontal Tube Furnace upto 1200 degree

T1260A 1200 degree vacuum horizontal tube furnace is a single heating zone with 440mm length tube furnace. This tube furnace max heating temeprature is upto 1150 degree controlled with PID precison temperature control, the temperature accuracy is ±1℃. It is widely used for laboratory sample heating,annealing etc.

Inquire Now Next Product

Products Description

Model	CHY-T1260A
Furnace Door	Split Type Furnace
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1100℃
Heating rate	≤20℃/min Suggest:10℃/min
Heating zones	Single heating zone
Quartz Tube Diameter	O.D60*1000mm
Inner Diameter	I.D 54*1000mm
Heating Zone Length	440mm
Constant Heating Zone	260mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Heating alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50Hz
Rated power	3.2kw
Overall dimensions	630×470×610mm
