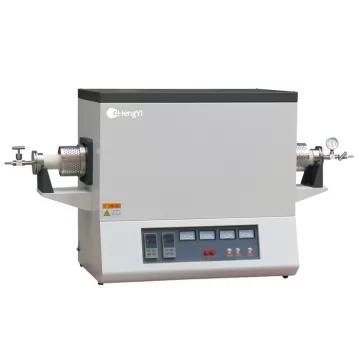

CHY-T1500B 1500 degree Two Heating Zone Vacuum Horizontal Tube Furnace

T1500B serial vacuum tube furnace is double heating zone furnace upto 1350 degree. It has Φ50/Φ60/Φ80mm Corundum tube size for option.This furnace's temperature controller is Seperate PID precison Yudian controller, the temperature accuracy is ±1℃.Heating zone length is 230+230mm. It is widely used for laboratory sample heating,annealing etc.

Inquire Now Next Product

Products Description

Model	CHY-T1550B	CHY-T1560B	CHY-T1580B
Display Model	Highlight LED display
Maximum Temperature	1350℃
Working Temperature	≤1350℃
Heating rate	Suggest:<10℃/min
Heating zones	Double heating zone
Quartz Tube Diameter(mm)	O.D50I.D401200L	O.D60I.D501200L	O.D80I.D701200L
Heating Zone Length	230+230mm	230+230mm	230+230mm
Constant Heating Zone	180+180mm	180+180mm	180+180mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Heating alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	S-type thermocouple
Heating Element	SiC heating rod
Quartz Tube Material	High Purity corundum tube
Power Supply	220V 50Hz
Rated power	5.0kw
Overall dimensions	800540750mm
