CHY-V1200-SCB 1100 ºC Max Compact Crystal Growthing Furnace

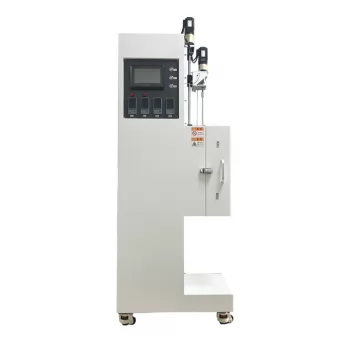

CHY-V1200-SCB 1100 ºC Max Compact Crystal Growthing Furnace is desinged for single crystal growthing. It has two vertical heating zone with sample dipping motor.The max dipping speed is 0.1~100mm/h; the rotating speed is adjustable.PID accuracy temperatuer control and over heating alarm can make sure client get a safety and high quality crystal growthing result.

Inquire Now Next Product

Products Description

Model No.	CHY-V1200-SCB
Heating Zone Length	110+110mm
Constant Zone Length	80mm
Max Working Temper	1150 degree
Thermocouple	K type
Temperature Accuracy	+/-1 degree
Temper Control	PID programmable control
Heating rate	Suggest:10℃/Min
Heating Element	Fe-Cr-Al-Mo wire (OCr27Al7Mo2)
Thermalcouple	K type or S type as request
Alarm	Built-in protection for the over-heating and broken thermocouple.
Dipping speed	0.1～100mm/h
Rotating speed	0.1～100r/min
Dipping distance	200mm
Power Supply	AC220/50Hz
