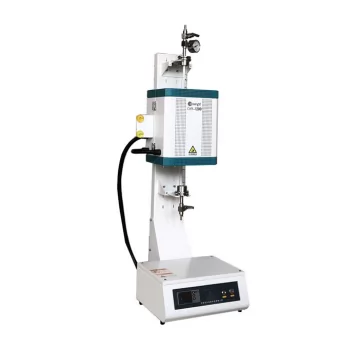

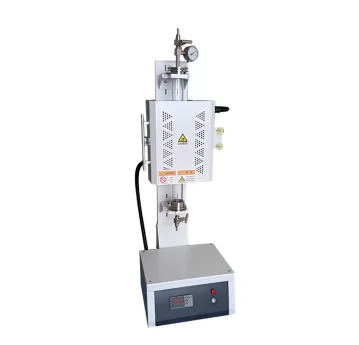

CHY-V1250S Compact 1200 degree Vertical Vacuum Tube Furnace

V1250S mini vertical tube furnace is a compact vacuum tube furnace with 200mm heating zone length. This tube furnace max heating temeprature is upto 1150 degree controlled with Yudian PID precision temperature controller, the temperature accuracy is ±1℃. It is widely used for laboratory sample heating,annealing etc.

Inquire Now Next Product

Products Description

Model	CHY-V1250S
Furnace Door	Split Type Furnace
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1100℃
Heating rate	≤20℃/min Suggest:10℃/min
Heating zones	Single heating zone
Quartz Tube Diameter	O.D50I.D44600mm;O.D25I.D20600mm for option
Heating Zone Length	200mm
Constant Heating Zone	100mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Over heat alarm	Have
Overcurrent protection	Have
Thermocouple Failure Protection	Have
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50Hz
Rated power	1.2kw
