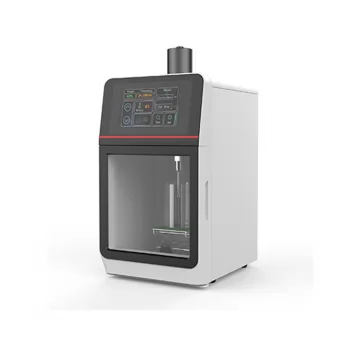

Ultrasonic Processor with 2L-4L Processing Capacity

Ultrasonic processors are one of the commonly used equipment for sample pretreatment in laboratories, widely used in fields such as nanotechnology, biology, chemical industry, pharmaceuticals, dyes, optics, jewelry, aerospace, hardware, and automotive manufacturing.

Inquire Now Next Product

Products Description

Model #	NE-1800Z	NE-2000Z	NE-2500Z
Power supply	85-260V/50-60Hz
Net output power	1800W	2000W	2500W
Probe Material	Titanium alloy：T1—6AL—4V
Probe Diameter	Φ18mm	Φ20mm	Φ25mm
Processing capacity	0.1～2200ml	0.1～3000ml	0.1～4000ml
Nominal frequency	19-26KHz（Real-time display frequency）
Timer	1Min～99H
Power regulation	1％—100％；precision：1％
Temperature setting	0—300℃，precision：1℃
User program	10 groups (can be set, can be stored, working status can be viewed in real time)
Pulse interval time	1S～60Min can be set and saved
Operating mode	Pulse、Time、Continuous
LCD screen	Color touch screen, resolution：800×480
Operating language	English
Main interface display parameters	Ultrasonic output power, frequency, working mode, user group, setting key, equipment operating status, start/stop, equipment operating parameter details key
Run interface display	Total running time, working time, stop time, user group, overload temperature, power output ratio, working mode, program save key
Display light	Built-in ultrasonic output running display light. ultrasonic output state can be observed in real time.
Boundary dimension	340mm×270mm×479mm
Option Probe Size	Φ3，Φ6，Φ8，Φ10，Φ13，Φ16	Φ3，Φ6，Φ8，Φ10，Φ13，Φ16，Φ18	Φ3，Φ6，Φ8，Φ10，Φ13，Φ16，Φ18，Φ20
